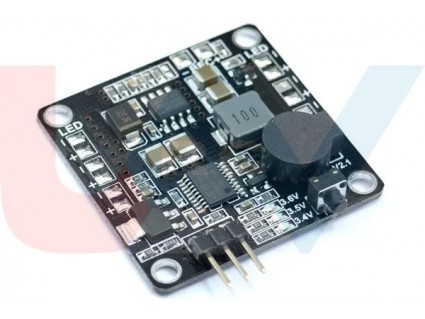

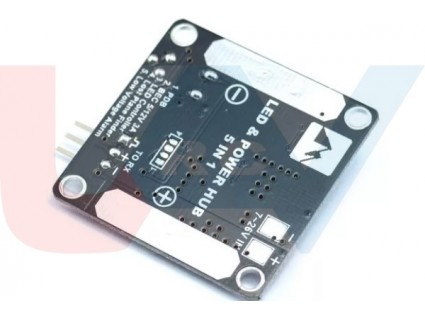

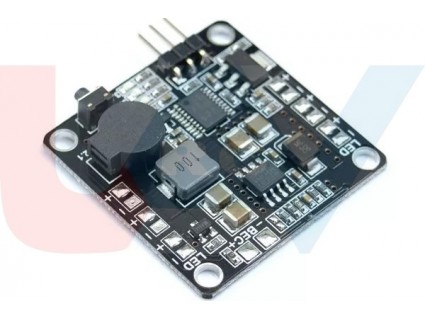

Matek LED and Power Hub 5 in 1 Lipo 2-6s

Matek 5 in 1 Module Power Distribution Board + LED Control + BEC 5V+ Low Voltage Alarm+ Tracker

4 layers PCB with 2oz cooper. It is a 5in1 HUB with Power Distribution Board, BEC 5V/3A &12V/500mA, LED Light Controller, Lost Plane Finder & Low Voltage Alarm functions. It is specially made for the Multi-Rotors, mini FPV Quad. Built-in 5V BEC can be connected to receiver or flight controller with Aux pins directly. simplify wiring. The BEC 12V can be used to power the Camera, Video Transmitters,ect. Inbuilt 5V LED light controller, three flash modes can be choosed with the toggle switch of transmiter. And the buzzer can also be triggered with the toggle switch, which can help you find the models in tall grass or trees. the 5in1 also acts as a battery voltage monitor. Once voltage gets below the threshold you set, the buzzer & LED light will remind you

Features:

5 functions in 1 Module (PDB+BEC5v/3A+LED control+Tracker+Low voltage alarm)
With 5V LED control, three modes: light, slow blink, and flash
Tracker function, use remote control to trigger buzzer and LED lights
Convenient for finding the Multicopter, Plane, etc..
Small size & light weight
2oz copper Board
4-layers PCB.
ESC & Battery solder tabs in pairs
BEC 5V & 12V
Output LED indicators
TVS input protection Package

Specification:
Input voltage 2-6S Lipo (7~26VDC)

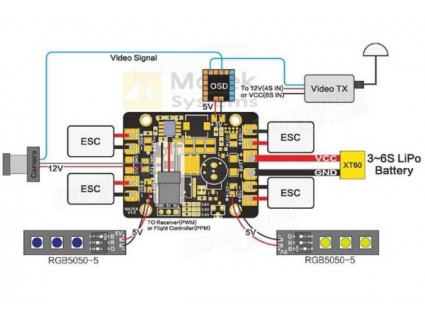

1 Battery input & 4 ESC outputs
Regulated 5V and 12V outputs
LED power indicators ( 5V & 12V outputs )
4 pairs 5V LED light pads
Low voltage setting value indicators
Dimensions: 36x36x6mm
Weight: 9g
Mounting holes 30.5mm square spacing with 3.0mm screws (same size as Naze32, CC3D FCs)

What you Get:

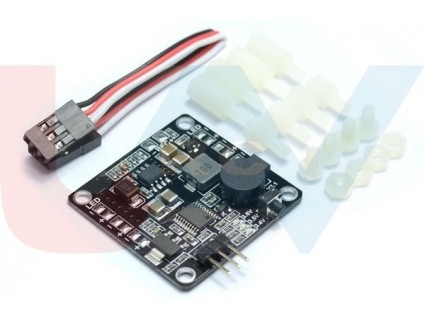

1 X Matek LED & POWER HUB 5in1 V3 Board
