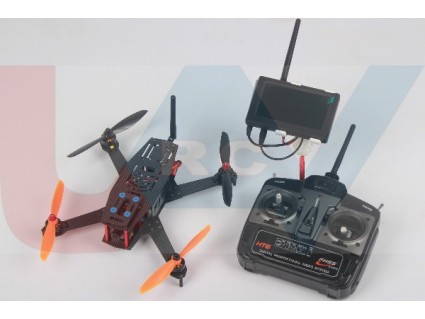

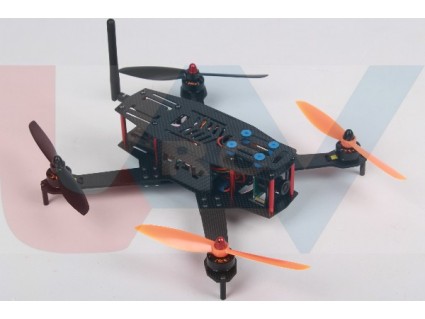

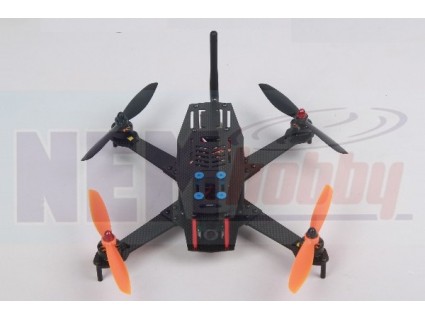

Racing Drone L250 RTF -FPV Ready

New Racing Quad 250 size, Fast and Agile your next step to racing quadcopters.

  • Sophisticate design that protects the Motors and ESCs
  • 3K Carbon Fiber Frame
  • On-Board FPV system (Camera, Video Transmitter 200mW and Cloverleaf Antenna)
  • It can fly indoor

Feature:
-Extremely low size for Racing Quad the size 160 is a reality!
-Super smooth and accurate movements
-Safety thermal over-load protection for ESCs
-Auto throttle shut down in signal lose situation
-Power arming protection (prevents the motor from accidentally running when switched ON)

Included in the Box:
1 x Racing Quad L250 ARF, Full Assembled inluded the following:
1 x 3k Carbon Frame
1 x PDB with BEC 5.0V and 12V 2A

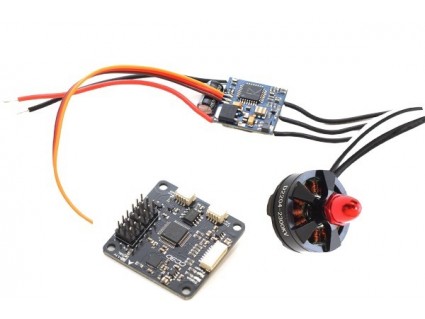

4 x Brushless Motor 2204-2300KV (2xCW+2xCCW)
4 x BL ESC 12A Simonk firmaware
4 x Propellers 6030 direct drive
1 x CC3D Flight Controller (pre-program)
1 x Micro Camera 720TVL, 127 degrees, DC12V

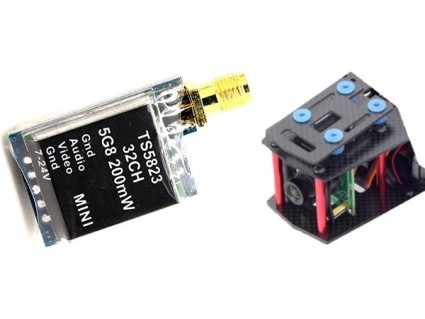

1 x Video Transmitter 5.8GHz, 200mW, 8ch
2 x Cloverleaf Antenna 5.8GHz (Tx+Rx)
1 x Transmitter 6ch 2.4GHz and 1 x 6ch Receiver 2.4GHz
1 x Monitor 4.3"
DC 8.4 ~12V
1 x Receiver 5.8GHz 8ch, DC 8.4 ~12V

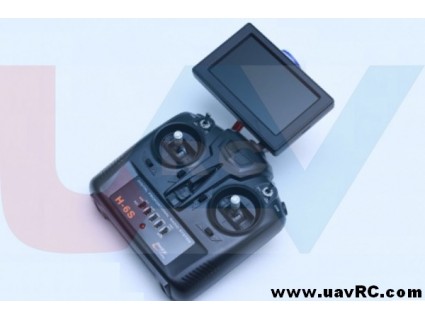

1 x Monitor Bracket for Radio Transmitter
1 x Aluminium Case for all equipment

Product Information
TipsThrottle Calibration: When you use the Quad for first time with your Tranmistter 2.4GHz, we would like to suggest you calibrate your throttle end point of your radio system. This will make the throttle response better. Please see following steps of how-to: 1. Power on your radio and push your throttle stick to 100% 2. Then connect battery to your ESC, you will hear two “beeps” from motor to confirm the end point after three seconds 3. Pull throttle stick back to 0%, you will hear two “beeps” from motor confirm the lowest end point
Connector TypeFor Motors 2.0mm Gold Plated, for Power Input XT60
Power Informations
Voltage3sLipo
Size and Weight Informations
Size (L * W * H)220 x 220 x 80mm
Weight500 grams (with Lipo Battery)
