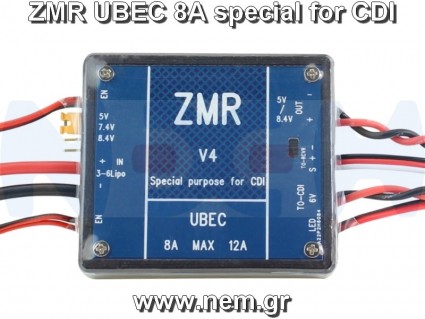

ZMR 8A V4 UBEC, 2-6S Lipo, Special for Gasoline Airplanes

ZMR UBEC V4 8A for RC-Drones, Planes, Boats, etc..

Special purpose for model airplane gasoline engine. Only one battery is used, one power output is supplied to servos, receiver and other devices at the same time, and the other power output adopts optocoupler isolation technology to ensure the safety and stability of power consumption between CDI and receiver.
Two outputs, including external power-off switch (When using this product, please keep this module at a distance of more than 10CM from CDI) switching technology to gain a much higher efficiency than a linear BEC, this means less heat and longer battery life. The UBEC is equiped with a noise reduction alloy housing to reduce noise even further

- Over-current and over-heat protection
- Conversion efficiency is over 93%

- Reduces electromagnetic interference, ensure the normal operation of the receiver

- LED Indicator for normal state is always on.

- External power-off switch, which is more convenient to use. When this switch is not needed, it can be removed directly.

- Silicone Wires for Input and Output

Input voltage: 4-8S LiPo (15-36V)

Output voltage: One way 12V fixed output. Another way 5.2V/6V/7.4V/8.4 route is optional

Output Current: 5.2 - 8.4V: 8A Instantaneous 16A 12V: Continuous 4A Instantaneous 6A

Input wire: AWG16, Output wire: AWG22

Dimensions: 49x46x11.5mm

Weight: 50g

1 x ZMR V4 UBEC 8A

Notes: When using 12V output, please use Lipo above 4s.
