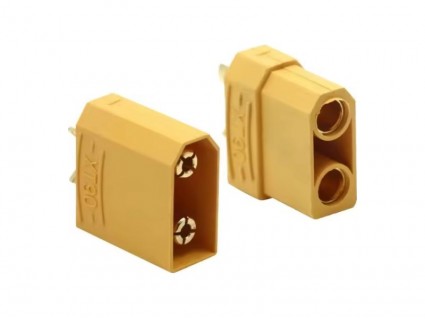

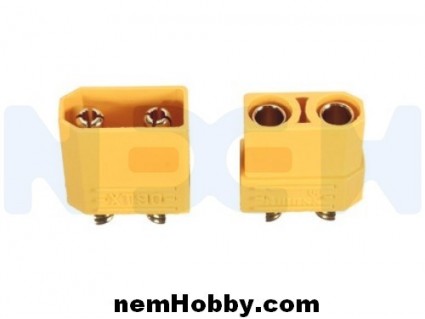

Connector XT90 Gold Plated -set

Connector XT90 Gold Plated -set
  • Stock: In Stock
  • Model: CPL-XT90P
Views 5651
2.25€

These connectors made from the highest quality materials to ensure you get the best connection. These connectors designed for RC applications

One set including:

  • Two high quality plastic cases (female-male)
  • Four high quality bullets 2x Female -2x Male socket

Specifications:
Contact Material:  Brass, Gold Plated
Housing Material: Nylon
Current Rating: max 90A
Temperature Range: -20 °C to +120 °C
Electrical Resistance: 0.56 mΩ
Recommended Wire Diameter:   10 AWG / 6 mm²

What you Get:
1 x Set gold connector XT90

Technical Information
AssemblyFor Battery use Female Bullets. For ESC's, Charger, etc. use Male Bullets. Attn.: Usually Squared Off Housing is Positive and Round Off housing is Negative
RecommendedUse with Silicone Cable (10AWG/0.5mtr.) power up to 90A constant current
Product Information
ColorYellow
Product Specification
MaterialHigh Temp. synthetic plastic (case) & gold coated copper (plug)
