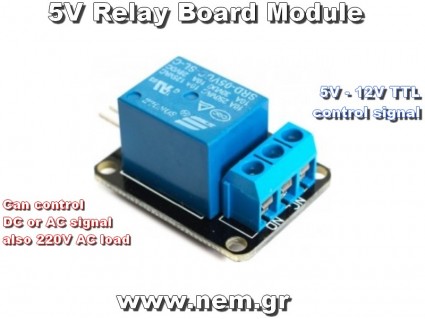

Relay Module 5V 1-Channel High Level Trigger with Transistor Drive (10A AC/DC)

Relay Module 5V 1-Channel High Level Trigger with Transistor Drive (10A AC/DC)
Relay Module 5V 1-Channel High Level Trigger with Transistor Drive (10A AC/DC)
New Product
Relay Module 5V 1-Channel High Level Trigger with Transistor Drive (10A AC/DC)
Relay Module 5V 1-Channel High Level Trigger with Transistor Drive (10A AC/DC)
Relay Module 5V 1-Channel High Level Trigger with Transistor Drive (10A AC/DC)
  • Stock: In Stock
  • Model: RME-RL5VH
Views 8
1.55€
Ex Tax: 1.25€
Overview:
This 5V 1-Channel High-Level Trigger Relay Module is an essential component for microcontroller development, robotics, and smart home appliance control. Designed with transistor amplification and active pull-down logic, it delivers reliable load switching while protecting your control board logic pins.

Key Features:
  • High-Level Trigger Logic: Compatible with 5V to 12V TTL logic signals.
  • Enhanced Transistor Drive: Transistor circuit increases coil driving efficiency while keeping control inputs at high impedance.
  • Floating Pin Safety: Integrated pull-down circuit ensures the relay remains stably OFF if the control wire becomes disconnected.
  • Status Monitoring: Built-in LED indicators show board power status and active relay coil operation.
  • Versatile Load Control: Safely switches AC loads up to 220V AC or standard DC signals.
Specifications:
- Relay Operating Voltage: 5V DC
- Control Signal Voltage: 5V – 12V TTL (High-Level Trigger)
- Contacts: Normally Open (NO) / Normally Closed (NC) / Common (COM)
- Application: Microcontroller development, home automation, load switching

What you Get:
1 x Realay Module 5V 1-channel High Level Trigger with Transistor Drive (10A AC/DC)

Power Informations
Voltage - Current30 Volts 10 AMps
Voltage5-12 volts DC
