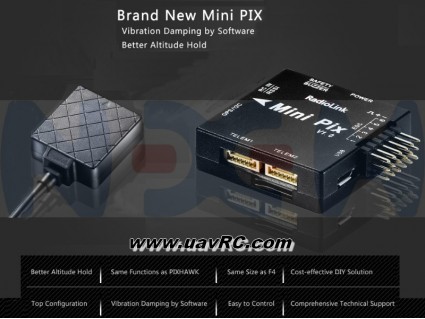

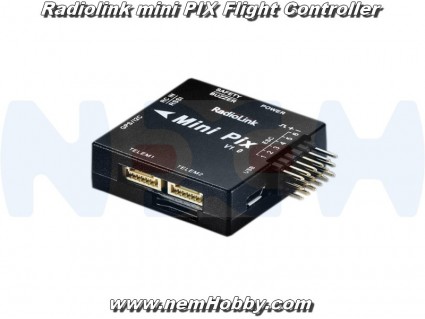

Mini PIX Flight Controller with GPS -Full Set

Introduction:

The Mini PIX Flight Controller is based on the mature research and development of PIXHAWK. The Radiolink mini PIX is equipped with a STM32F405VGT6 Processor, a LPS22HB Barometer, a MPU6500 Accelerometer and a QMC5883L Compass with the same technology as in the HMC5983.
It has a shell completely closed to protect the interaction effects of air current wake on air pressure during flight.
The main board has air pressure vent to ensure accuracy of the barometer testing. Its shell design and vibration damping with the software make the Mini Pix better in Altitude Hold Effect.

Features:

Small flight controller with the same Functions as PIXHAWK

Better Altitude Hold
Vibration Damping by Software
Equipped with a Processor, a Barometer, an Accelerometer, a Compass, etc.
Compatible Models: Fixed wing planes, Multicopters 3 to 6 Motors, Helicopters, Vehicles, Boats, etc..

Specifications
Processor: STM32F405VGT6
Sensor: Gyro MPU6500
Compass: QMC5883L
Barometer: LPS22HB

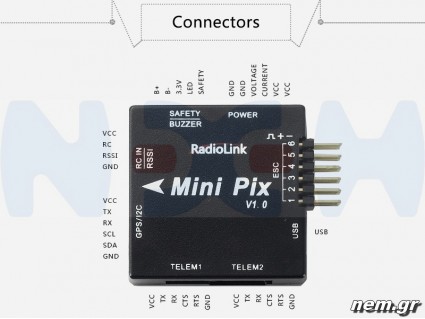

Connector: JST GH connector
Mavlink UART: 2(with CTSRTS)
GPS UART: 1
RC In signal input: PPM/SBUS
RSSI signal strength input: PWM/3.3V
I2C: 1
PWM input: 6 OneShot/PWM output
Buzzer: 1
Switch: 1
Power: 1
Compatible Models Fixed wing planes, Multicopters 3 to 6 Motors, Helicopters, Vehicles, Boats, etc..
PM operate voltage: 5.1V
USB voltage: 5V+-0.3V
Servo voltage: Do not support input

Temperature: -40~80°C

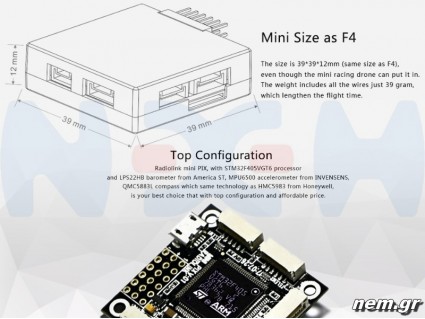

Size: 39x39x12mm
Weight: 12grams (without wires)

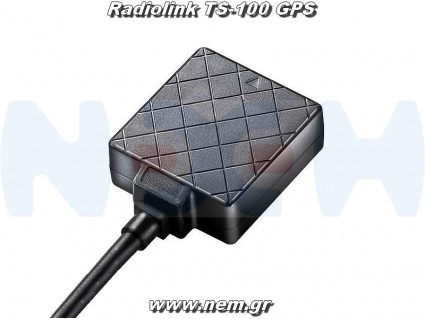

GPS Radiolink TS100 Specifications:

Introduction:
Radiolink TS100 Mini GPS Module for Mini PIX Flight Controller. Compatible with: Radiolink Mini PIX
The Radiolink TS100 Mini GPS Module for Mini PIX Flight Controller can measure with a 50-centimeter precision of accuracy when working with concurrent GNSS. The prc-lNA low loss circuit design has enhanced ability to capture extremely weak signals. Positioning 20 satellites in 6 seconds at open ground and valley station keeping ability Reception of GPS/QZSS LI C/A, GLONASS HOf, BelDou Bl SBASll C/AWAAS, EGNOS, MSAS

Specifications

M8N GPS decoder chip, with u-blox UBX-M8030 (M8), 72-channel
Max update rate: up to 10Hz
Compatible with: Radiolink Mini PIX

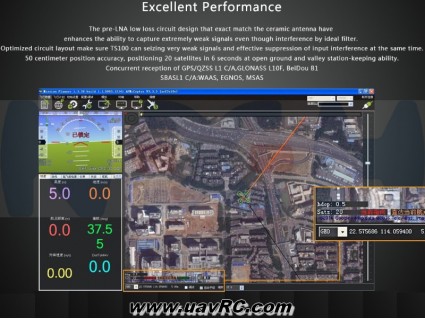

Positional accuracy: 50-centimeter precision GNSS
Velocity precision: 0.1m/s
Max height: 50000m
Max speed: 515m/s
Max acceleration: 4G
Max update rate: up to 10Hz
Sensitivity: Tracking and Nav.: -167dBm, Reacquisition: -163dBm
Cold start: -151dBm, Hot start: -159dBm
Time to first fix: Cold start: 26s, Hot start: 1s
Geomagnetic: QMC5883L which with same technology as HMC5983 form
Antenna: 2.5dbI high gain and selectivity ceramic antenna
Double filter: SAWF(Surface acoustic wave filter) form Murata

Connect ports:
Power supply: voltage 5VDC+-5 percent, current 50-55mA
GPS UART interface
Baud rate: 1.2K/4.8K/9.6K/19.2K/38.4K/57.6K/112.5K
Geomagnetic I2C interface

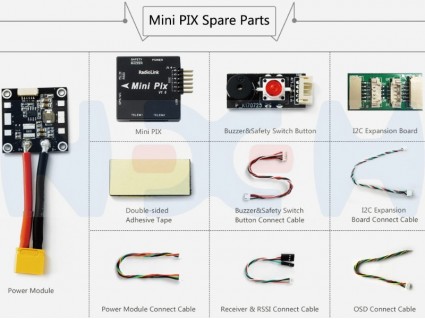

What you Get:
1 x Radiolink mini PIX Flight Controller
1 x Radiolink GPS TS-100
1 x Connection Cables with Connectors for installation

Technical Information
Recommended	Flight Controller for MultiRotors
Product Information
Product Type	32-bit processor running at 3.3V
Product Specification
Sensor(s)	MPU6050 + QMC5883L + LPS22HB
Size and Weight Informations
Dimensions	39 x 39 x12mm
Weight	12 grams
