FlySky FS-i6 Transmitter + FS-iA10B Receiver -FHDS 2A, AFHDS

FlySky FS-i6 Transmitter + FS-iA10B Receiver -FHDS 2A, AFHDS
  • Stock: 10~20 Days
  • Model: ERST-i6-iA10B
Views 753
Ex Tax: 60.00€

Sort Description:
The FlySky FS-i6, 2.4GHz, with 6 channels, AFHDS, Radio Control (RC) Transmitter, with Flysky Receiver FS-iA6B with two Antennas. Suitable for RC Models, Boats, Airplanes, Drones, FPV, RC-Cars, Arduiono, etc,.

Works in the frequency range of 2.405 to 2.475GHz.This band has been divided into 142 independent channels,each radio system uses 16 different channels and 160 different types of hopping algorithm.

This radio system uses a high gain and high quality multi directional antenna,it covers the whole frequency band. Associated with a high sensitivity receiver,this radio system guarantees a jamming free long range radio transmission.

Each transmitter has a unique ID,when binding with a receiver,the receiver saves that unique ID and can accepts only data from the unique transmitter.this avoids picking another transmitter signal and dramatically increase interference immunity and safety.

This radio system uses low power electronic components and sensitive receiver chip.The RF modulation uses intermittent signal thus reducing even more power consumption.

AFHDS2A system has the automatic identification function,which can switch automatically current mode between single-way communication mode and two-way communication mode according to the customer needs.

AFHDS2A has built-in multiple channel coding and error-correction,which improve the stability of the communication,reduce the error ratio and extend the reliable transmission distance.

Specifications FS-i6 Transmitter:
- Item Name: FS-i6
- Channels: 6 Channels
- RF Range: 2.40-2.48GHz
- Bandwidth: 500KHz
- Band: 142
- RF Power: Less Than 20dBm
- 2.4ghz System: AFHDS 2A and AFHDS
- Code Type: GFSK
- Sensitivity: 1024
- Low Voltage Warning: less than 4.2V
- DSC Port: PS2;Output:PPM
- Transmitter Weight: 392g
- Package Weight: 676g
- Transmitter Size: 174x89x190mm
- Package Size: 23.5x21.2x10.6cm
- Power: 6V 1.5AA x 4 pcs
- Display mode: Transflective STN positive type, 128x64 dot matrix VA73x39mm, white backlight.
- On-line update: Yes
- Color: Black
- Model Memories: 20
- Control Range: Approx. 500m

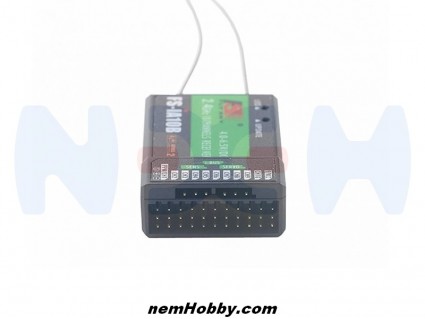

Specifications Receiver FS-iA10B:
- Product Model: FS-iA10B
- PWM channels: 10
- Wireless frequency: 2.4GHz
- Wireless protocol: AFHDS 2A
- Range: 500 ~ 1500m (in the air)
- Antenna type: Dual copper tube antenna (150mm * 2)
- Power: 4.0-8.4V
- RSSI: Supported
- Data port: PWM / PPM / i.bus / s.bus
- Temperature range: -10 ℃ — + 60 ℃
- Humidity range: 20% -95%
- Online Update: Yes
- Dimensions: 47 * 33.1 * 14.7 mm
- Weight: 19.3 g
- Color: Black
- i-Bus Interface: Yes
- Data Acquisition Interface: Yes
- Model Type: Airplane / Helicopter
- Compatible Transmitters: FS-i4, FS-i6, FS-i6X, FS-i10,FS-GT2E,FS-GT2G

What you Get:
1 x Flysky Transmitter FS-i6
1 x Flysky Receiver FS-iA10B

Technical Information
Configuration2.4ghz System: AFHDS 2A and AFHDS
VBar Control
TelemetryReceiver Battery Voltage
RangeRF 2.40 - 2.48GHz
Product Information
Wireless Devices / FPV Equipment
Power Informations
Voltage6V (4x 1.5V AA Batteries)
Size and Weight Informations
Size (L * W * H)174 x 89 x 190 mm
Weight392 grams
