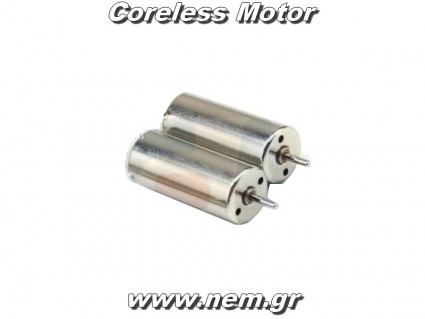

Micro Coreless Motor Ultra High Speed for RC Models, Ronbits, DIY projects
Features:
Rated voltage 3.2V DC
Direction of rotation CW and CCW
Operating voltage range DC3.0-3.7V DC
Operating temperature range -10-50°C
Specifications:
Item Name: Coreless Motor 720
Motor Diameter: 7mm
Motor Length: 20mm
Shaft Diameter: 1.0mm
Cable Length: about 60mm
Weight: about 5g

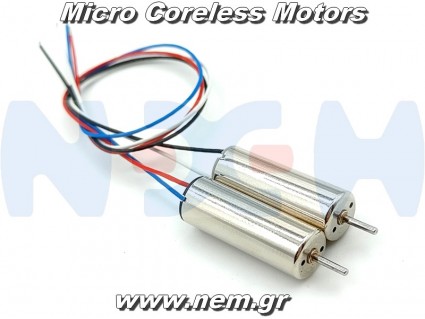

Clockwise Motor (With Red Blue wire),
Counter-clockwise Motor (With Black White wire)
Rated voltage 3.2V DC
Direction of rotation CW and CCW
Operating voltage range DC3.0-3.7V DC
Temperature range -10-50°C
No Load Current: approx. 120mA
No Load Speed: ap\rox. 50000RPM
Usage:
For 40mm-90mm wheelbase Indoor Micro FPV Racing Quadcopter. RC-Airplanes, Model Helicopters, etc.
What you Get:
1 x 720 Coreless CW Motor
1 x 720 Coreless CCW Motor
