Step Motor NEMA 17 S4401, 1.7A, 4kgs-cm 280g
17.80€
Ex Tax: 14.35€










NEMa 17 Step Motor 17HS4401,1.7A, 78 oz-in or 4.0kg.cm holding torque, 5mm diameter shaft)
Features:
Diameter Motor Shaft: 5mm
Step angle accuracy: + - 5%(full step,not load)
Resistance accuracy: + - 10%
Inductance accuracy: + - 20%
Temperature rise: 80deg Max(rated current,2 phase on)
Ambient temperature: 20deg ~+50deg
Insulation resistance:100M Min, 500VDC
Insultion Strength: 500VAC for one minute
Wiring:
Red: A+
Green: A-
Yellow: B+
Black: B-
What you Get:

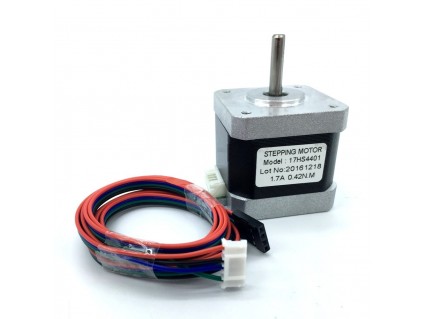

1 x Step Motor NEMA 17 HS4401
1 x Motor Cables with connector
| Power Informations | |
| Voltage - Current | |
| Size and Weight Informations | |
| Weight | 280 g |
| Length | 40mm |
