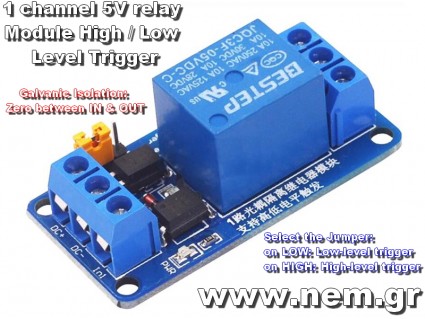

Relay Module 5V 1-Channel Optocoupler Isolated 10A 250V AC High/Low Level Trigger for Arduino Raspberry Pi ESP32

Overview:

This high-performance 5V 1-channel relay module features SMD optocoupler isolation for superior stability, strong driving capability, and electrical safety for your microcontroller. It handles up to 10A switching loads and supports High and Low level triggering via an onboard jumper.

Key Features:

• Optocoupler Isolation: Uses SMD optocouplers to isolate sensitive control electronics from high-power loads.

• Dual Trigger Modes: Easily select High-level or Low-level control via an onboard jumper cap.

• Fault-Tolerant Design: The relay will not activate if the control signal wire is disconnected or broken.

• LED Status Indicators:

  • Green LED: Power indicator

  • Red LED: Relay state indicator

• User-Friendly Interface: Direct screw-terminal connections for easy installation without soldering.

Specifications:

Pinout & Wiring Terminals:

Module Inputs

• DC+: Positive power supply (+5V)

• DC-: Ground connection (GND)

• IN: Control signal input pin (3.3V / 5V Logic)

Relay Outputs (Switched Load):

• NO: Normally Open contact

• COM: Common contact

• NC: Normally Closed contact

Trigger Mode Selection (Jumper Configuration):

• Jumper connected to LOW: Set to Low-Level Trigger (Relay activates when the signal is pulled to GND / 0V).

• Jumper connected to HIGH: Set to High-Level Trigger (Relay activates when the signal receives HIGH / 5V).

What you Get:

1× 1-Channel 5V Relay Module (Optocoupler Isolated, High/Low Trigger)
