Scorpion S-1805-2250KV

Scorpion S-1805-2250KV
  • Stock: In Stock
  • Model: SCO-S_1805_2250
Views 623
24.80€
Ex Tax: 20.00€

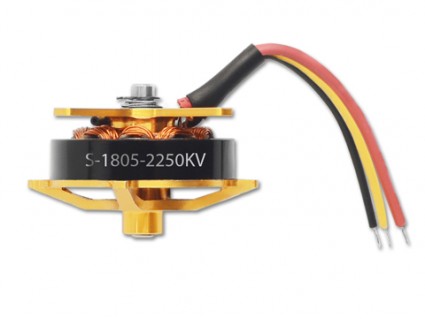

Scorpion Motor S-1805-2250KV
[S_1805_2250]

With the new, smaller Scorpion S-1805 Slowfly motor, Scorpion completed the motor program in small ranged motors.

Scorpion Competition Series Brushless Motors are built from the best materials available, and are designed to provide both quality and performance at an affordable price. The new S-18 series motors are designed in Germany by “mfly modellmotoren”. The mfly motors are one of the most popular and successful slowfly motors for indoor competitions. The result is the lightest contest motor that turns a 9” propeller with such a high efficiency.

Scorpion starts with high quality aluminum alloy parts that are produced on the latest CNC milling machines. These parts are then gold Electro-Plated to provide a beautiful, long-lasting finish. The 3mm Titan axle is also a tribute to saves the very low weight. The stators are made with 0.2mm laminations to give maximum efficiency, and minimum Eddy current losses. The stators are epoxy coated to prevent shorts, and are wound with wire that is rated at 180 degrees C (356 F). The magnets used in Scorpion Motors are custom manufactured to be able to withstand high temperatures.

All Scorpion 18mm motors come with 2mm light weight male Bullet style connectors already attached, and include a complete hardware package that contains the following: 3 matching female Bullet connectors for your speed controller, a cross style back plate mount from CFK with 4 screws, fixing tubes and plastic srews to fix the motor at indoor models.

Scorpion Motors are built to last, and are backed with a 2-Year warranty against defects in materials or workmanship. For the best overall combination of quality, performance, and value, gives Scorpion Motors a try!



Specification

Stator Diameter
Stator Thickness
No. of Stator Arms
Magnet Poles
Motor Wind
Motor Wire
Motor Kv
No-Load Current (IO)
Motor Resistance (Rm)
Max Continuous Current
Max Continuous Power
Weight
Outside Diameter
Shaft Diameter
Body Length
Overall Shaft Length
Max Lipo Cell
Motor Timing
Driving Frequency
18 mm (0.87 in)
5 mm (0.197 in)
9
12
14 Turn Y
1 - Strand 0.425 mm
2250KV RPM / Volt
0.25 Amps @ 6.5V
0.4 Ohms
7 Amps
45 Watts
16 Grams (0.56 oz)
23 mm (0.9 in)
2.98 mm (0.17 in)
18 mm (2.71in)
21 mm (0.83 in)
2s
120deg
8kHz

Included in the Box
1 x Scorpion S-1805-2250KV Motor
2 X O-Ring

Weight including packaging

120g

Full Dimension
View Scorpion S-1805-2250KV Full Dimension

* Please note that photographs may not accurately represent the number of items per package, size, color or features of a product.

Motor Specifications
Stator Diameter18 mm (0.87 in)
Stator Thickness5 mm (0.197 in)
Stator Arms9
Stator Poles12
Motor Wind14 Turnb Y
Motor Wire1-Strand 0.425 mm
Motor KV -RPM/Volt2250 KV RPM/Volt
No-Load Current (Io/10V)0.25Amps @ 6.5V
Motor Resistance (Rm)0.4 Ohms
Power Informations
Max Lipo Cell2s
Motor Timing120deg
Drive Frequency8kHz
Max Continuous Current7A (10 seconds)
Max Continuous Power94 Watts (10 seconds)
Size and Weight Informations
Weight16 Grams (0.56 oz)
Outside Diameter23 mm (0.9 in)
Body Length18 mm (2.71 in)
Shaft Diameter2.98 mm (0.12 in)
Overall Shaft Length21 mm (0.83 in)
